Networking - Creating a Simple LAN using Packet Tracer





What is Networking?

Think you have a small Shop where you need to maintain  4 Computers, So some times you may want to send some information to those Computers, So it might be very difficult to share those pieces of information all the computers at once. In that case, Networking comes into play

Basically, Networking is the interconnection of two or more computers to exchange data and share resources with each other.

Introduction to Packet Tracer





Packet Tracer is a Network Designing Software, So why do we want to use this?


If you are a Beginner in Networking, You surely need to do practicals on building networks and practice Configurations because, If we want to build a network using real devices, it costs more

Installation of Packet Tracer


1. First visit - Cisco Packet Tracer - Networking Simulation Tool (netacad.com)

2. Then you have to Register on this Site and go to Global NetAcad Instance | I'm Learning | Networking Academy

3. Then click Packet Tracer on this Dropdown



4. Then in the Packet Tracer Page , Scroll Down

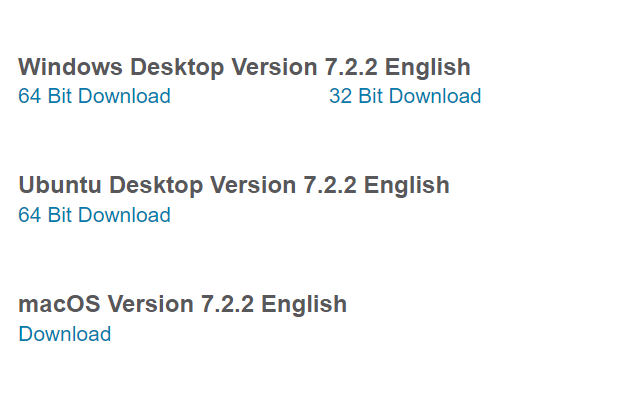

5. Then select the correct Option and proceed with Downloading

6. Then just install the Packet Tracer using the default Settings



So now, let's see what's inside this Packet Tracer




These are the most needed things when we develop a network

  • First One shows some networking devices such as Routers, Switches, Hubs

  • The second one shows some end devices such as PCs Laptops, Servers

  • The Third one shows some basic components such as Boards, Actuators, Sensors

  • The fourth One includes the Connection types such as Copper Straight through, Copper Cross Over

So in this Series, we mostly use First, Second, and Third Options only


So Let's Create a small LAN network that consists of Two PCs and a Switch


1. First Click on the Network devices that I have mentioned in the Previous Part and click on End Devices



2. Then click on this Switch icon



3. Then you will see a list of Switches from that list, Select 2960 Switch



4. Then Click on Which Surface then Switch will be dropped into the working area



5. Then Click on End Devices and from the Next Set Select End Devices



6. You can see PCs from the list next to the above list, select PCs and place two PCs, same as the Switch


7. Now we are going to Connect those 3 Devices to each other using Cables



Usually, when connecting these devices we use 2 types of Cables

1. Copper Straight Through Cables - When connecting Different Types of devices, we use this      cable

                    For example - when Connecting a Switch and a Computer

2. Copper Cross Over Cables - When connecting the Same Types of devices, we use this cable

                     For Example - When connecting Two Routers


8. In our Case We have to Connect the Router and Pc, so select Copper Straight-through Cable


9. the click on a PC and click Fast Eathernet0


10. Then click on Switch and select Any Fast Ethernet port , in my case i will choose FastEthernet0/1


11. Then it will Connect like this



12. Then Like that, again click on Straight through cable, Click on PC2, and Select Fast Ethernet port of PC and click on Switch and select FastEthernet0/2


So now basic Setup is over, Let's move on to the configuration Part


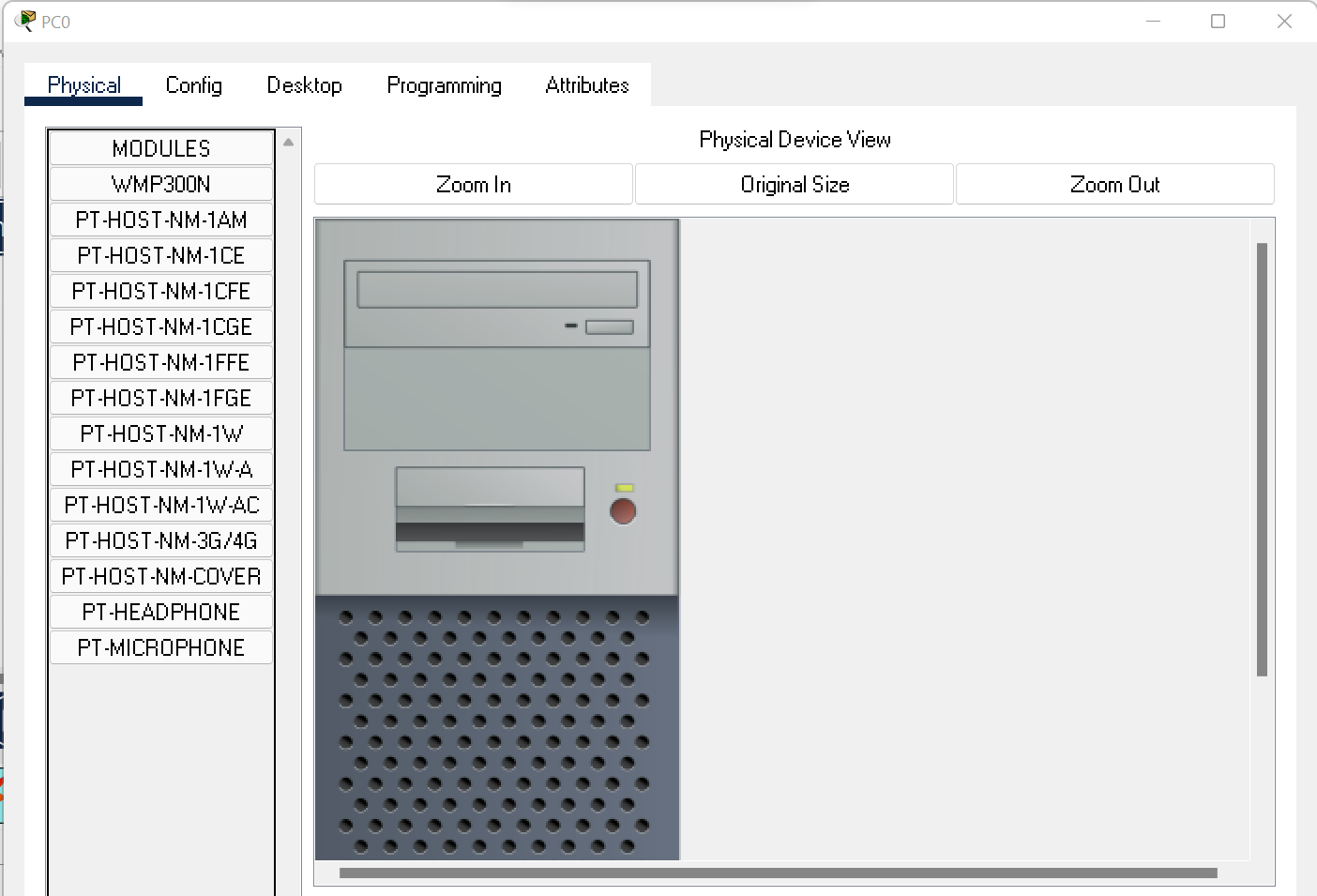

1. Click on PC1, you will get this window



2. Click on the Desktop field from the Top

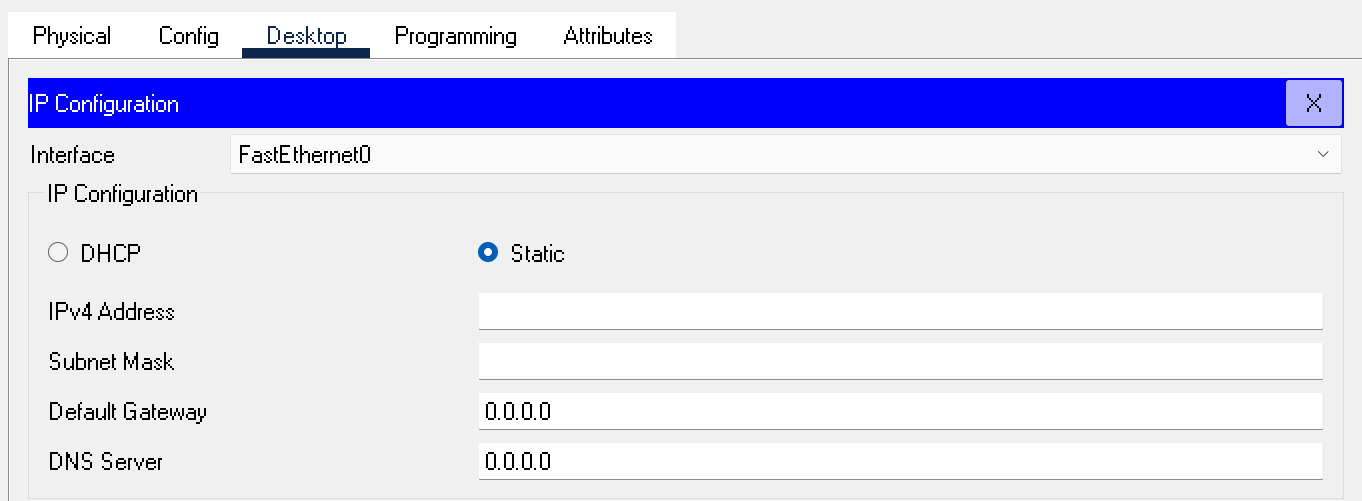

3. Then Select IP Configuration



4. So I'm assigning our Network IP as 192.168.1.0, So, I am giving the IP 192.168.1.1 to PC1


5. As same as the Above Go to the PC2 Ip Configuration and give the IP 192.168.1.2 to PC2




6. So that's all !! Let's see whether our Network works fine for that Click this Envelop icon at the top Tool Bar



7. By using this we can send a Packet ( A piece of Data ) from one device to another, so click on that icon and Click on two PCs One after the Other





So you at the bottom right you can see a Successful message appeared , that means your Network is fully Functional
